Products: Systems > Touring > M88: Overview
Subwoofer, Dual 18"
35Hz - 150Hz

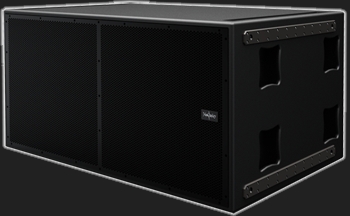

The M88 is a high efficiency, high power handling loudspeaker designed for touring sound sub-bass applications. The M88 features two, 4” voice coil, long excursion 18” cone drivers mounted in a mechanically and acoustically optimized bass reflex enclosure. The cone driver incorporates McCauley Sound’s latest FEA optimized neodymium motor with a new hybrid paper composite cone body for increased linearity and lower distortion at high output levels. The M88 enclosure features a large vent area for decreased port turbulence and integrated handles and casters which allow for easy setup, loading and transportation.

The enclosure is constructed of multi-ply void-free birch hardwood plywood and is coated with a weather and wear resistant ProCoat™ polyurea hybrid finish. All rigging components are weather protected with a heat cured epoxy powder coat finish. Components in the front of the enclosure are protected by a flat grill made from perforated steel that is coated with heat cured epoxy powder, and lined with acoustically transparent foam.
Interlocking and Stacking Skids
Integrated Castor System
Quick Release Grill
Dual Neutrik NL4 Connectors
Ergonomically-placed handles
Perforated Steel Grill
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish
Satsop River Rocked by Sound Engineering Audio
Tacoma, WA based AVL service provider Sound Engineering Audio deployed an arsenal of McCauley Sound Monarc Line Array and M421 high performance subwoofers to support the Satsop River Rock Festival Reunion in Hoquiam WA.
The festival, which featured performances by Wishbone Ash, Eric Burdon, and many others, marked Sound Engineering Audio’s first use of the McCauley Sound M421 Subwoofers. The ...
Sound To Match A Beautiful Aesthetic At Christ United Methodist Church
An upgrade that brought intelligibility and musicality to a pristine space.
Vancouver 2010 Greets the 2014 Winter Olympics Host
McCauley Sound Loudspeaker systems used at Vancouver Olympics 2010
Spider Ranch Adds “Bone-Crushing” McCauley M421 Quad 21” Subwoofers
Supplementing existing inventory of McCauley Monarc MLA6 and MLA3 main line array systems and M88 dual 18” subwoofers
"“What makes the M421 special is that it adds a powerful bone-crushing low end that I have never heard before from any sub in all my 30 years of doing concert audio.”"
Main P.A.
Mega Church
Dance / DJ Club
Compatible Products
Comparable Products
M88 Dimensional Drawing
M88 Dimensional Drawing
M88 Cutsheet
M88 A&E Specs
M88 with S2 on end
M88 with 2 S1 on Poles
M88 with 2 S12 on Poles
M88 with 2 S15 on Poles
M88 with 2 S2 on Poles
M88 with S1 on end
M88 with S12 on end
M88 with S15 on end
