Products: Systems > General Staging > SA422-2: Overview
General Staging
2-Way Mid-High, 2" x Dual 12"
125Hz - 18kHz  /  50° x 70°

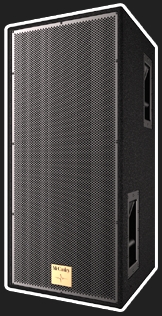

The SA422-2 was designed as compact, arrayable dedicated mid /high range system for small to medium scale stage sound reinforcement duty. This system’s complement is flexible enough to work superbly in both 3-way and 4-way configurations, while the SA422-2’s durable construction, compact size and reliable performance make this system an excellent choice for both regional level sound reinforcement.

The SA422-2 is a compact 2-way mid/high system in a trapezoidal, computer optimized enclosure. Loudspeaker complement consists of twin proprietary midrange 12”s, paired with a single extended high frequency 2” compression driver mounted on a constant directivity 50° H x 70° V horn. The system has been optimized to array efficiently with other SA400-2 and SA422-2 systems, creating seamless coverage arcs from any size cluster. Connections are made via industry standard NL8 connectors. The enclosure is constructed of durable 12-ply void-free birch laminate, dadoed for strength and durability. Steel handles facilitate loading and packing. The SA422-2 features interlocking top and bottom skid plates for reliable stacking. Eyebolt mount points are integrated into the enclosure design allowing the system to be flown or installed easily. Perforated steel, backed by acoustically transparent foam, is employed for frontal protection of the loudspeaker complement. Finally, the system is protected from damage and weatherproofed with McCauley’s ProCoat™ elastomeric finish.
Dual Neutrik NL8 Connectors
Locking Skid Plates
Integrated Eyebolt Suspension
Ergonomically-placed handles
Arrayable Pattern
Optimized for Intelligibility
McCauley Performance Class Componentry
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish

This product has been discontinued

"They’re [SA422-2] doing their job in a really big way!"
Side fills
General Staging
Live Performance Theater
Main P.A.
Link Download Acrobat from Adobe Systems
SA422-2 Cutsheet
